Product Introduction

Mining overhead passenger devices are mainly used for personnel transportation in up and down inclined shafts or alleys. It mainly consists of a driving device, a rope-supporting device, a traction steel wire rope, a passenger device, a winding wheel device, a tensioning device, a safety protection device, and an electrical control device. The transportation principle is to install the steel wire rope on the driving wheel pulley group and the winding wheel. After the steel wire rope is tensioned by the tensioning device, the driving device outputs power to drive the steel wire rope to operate continuously in a cycle. The passenger device hanging on the steel wire rope follows the steel wire rope up or down, thereby achieving the purpose of transporting people.

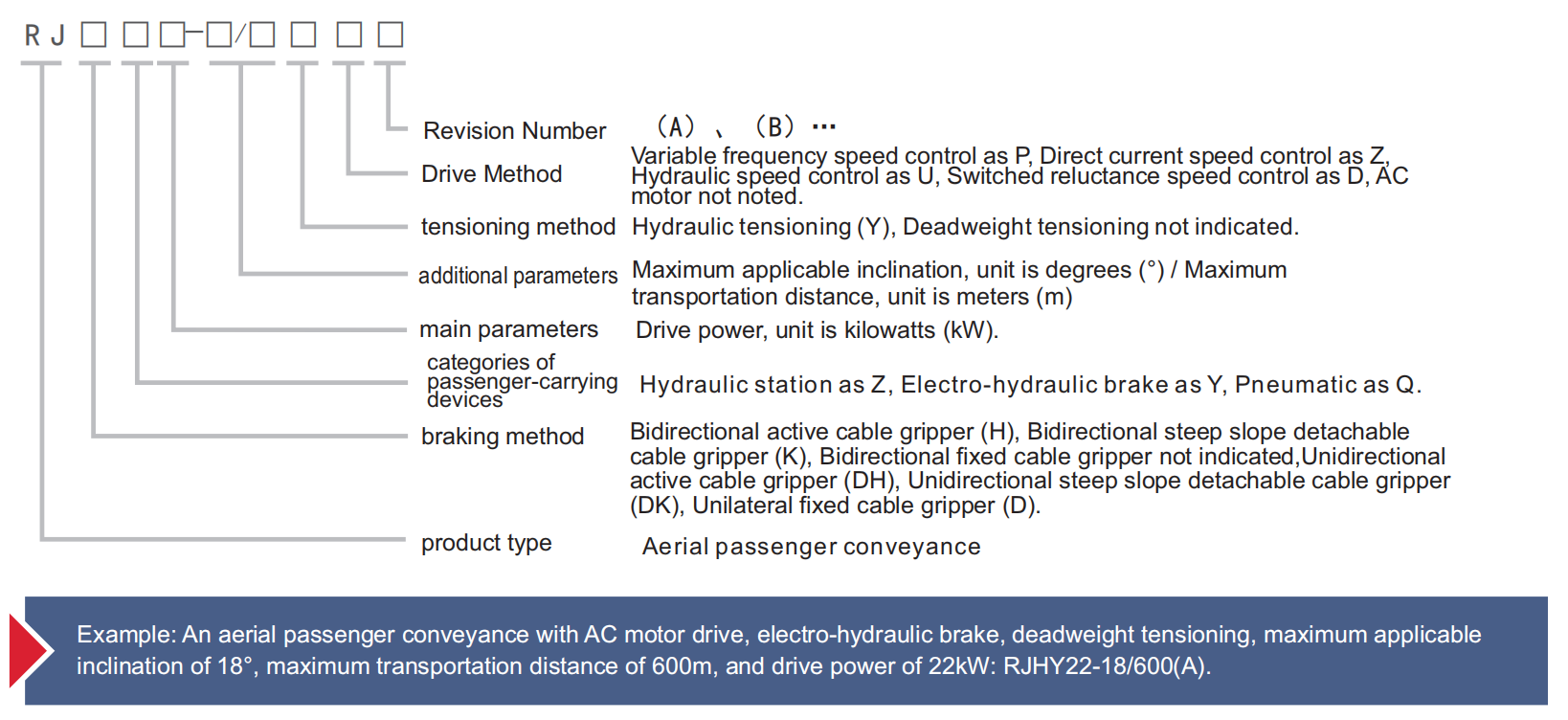

Model Definition
